CS80N07AR Datasheet - CR Micro

Silicon N-Channel Power MOSFET

CS80N07AR Features

* l Fast Switching l Low ON Resistance(Rdson≤7.9mΩ) l Low Gate Charge (Typical Data:51nC) l Low Reverse transfer capacitances(Typical:174pF) l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. Absolute（TJ= 25℃ unless otherwise specified）： Symbol Par

CS80N07AR General Description

VDSS 70 V CS80N07 AR, the silicon N-channel Enhanced ID（Silicon limited current 80 A VDMOSFETs, is obtained by advanced Trench Technology ID（Package limited） 60 A which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor PD(TC=25℃).

CS80N07AR Datasheet (430.76 KB)

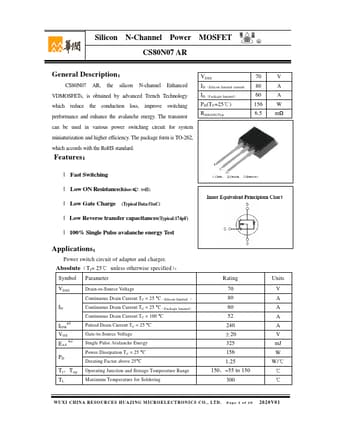

Preview of CS80N07AR PDF

Datasheet Details

Part number:

CS80N07AR

Manufacturer:

CR Micro

File Size:

430.76 KB

Description:

Silicon n-channel power mosfet.
