CS80N08A4 Datasheet, Mosfet, CR Micro

CS80N08A4 Features

  • Mosfet
  • Fast Switching
  • Low ON Resistance(Rdson≤8.5mΩ)
  • Low Gate Charge (Typical Data:59.8nC)
  • Low Reverse transfer capacitances(Typical:237pF)

PDF File Details

Part number:

CS80N08A4

Manufacturer:

CR Micro

File Size:

636.75kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS80N08 A4, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, im

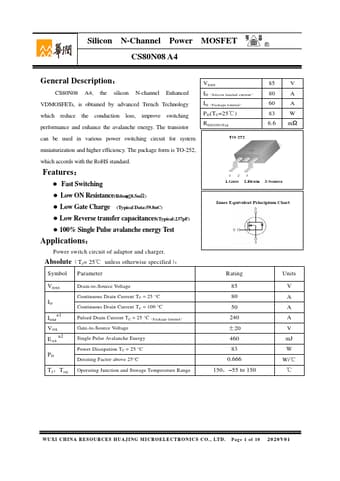

Datasheet Preview: CS80N08A4 📥 Download PDF (636.75kb)
Page 2 of CS80N08A4 Page 3 of CS80N08A4

CS80N08A4 Application

  • Applications Power switch circuit of adaptor and charger. Absolute(TJ= 25℃ unless otherwise specified): Symbol Parameter Rating VDSS ID IDMa1 VGS
