CS1505U, CS1005U CURRENT SENSOR

CS1505U Description

Additional Resources: Product Page | 3D Model | PCB Footprint SERIES: CSXX05U │ .
CURRENT SENSOR FEATURES. open loop. unipolar. detects current direction. single channel date 09/03/2019 page 1 o.

CS1505U Features

* open loop
* unipolar
* detects current direction
* single channel date 09/03/2019 page 1 of 4 MODEL CS0305U rated current (If) (ARMS) +3 linearity range1 (Im) (APEAK) +6 CS0505U +5 +10 CS1005U +10 +20 CS1505U +15 +30 CS2005U +20 +40 Notes: 1. Im is

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CS1505U, CS1005U. Please refer to the document for exact specifications by model.

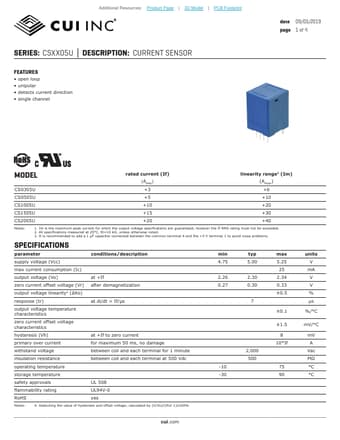

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CS1505U, CS1005U
Manufacturer
CUI
File Size
293.79 KB
Datasheet
CS1005U-CUI.pdf
Description
CURRENT SENSOR
Note
This datasheet PDF includes multiple part numbers: CS1505U, CS1005U.
Please refer to the document for exact specifications by model.
