CS150N95 Datasheet, Mosfet, CASS

CS150N95 Features

  • Mosfet
  • VDS=150V; ID=104A@ VGS=10V; RDS(ON)<14.0mΩ @ VGS=10V
  • Special Designed for E-Bike Controller Application
  • Ultra Low On-Resistance
  • High UIS and UIS

PDF File Details

Part number:

CS150N95

Manufacturer:

CASS

File Size:

576.96kb

Download:

📄 Datasheet

Description:

N-channel trench power mosfet. The CS150N95 is N-channel MOS Field Effect Transistor designed for high current switching applications. Rugged EAS capability and ult

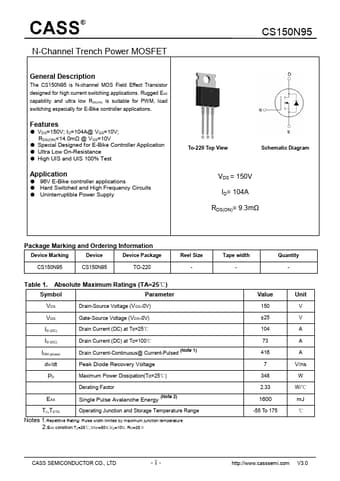

Datasheet Preview: CS150N95 📥 Download PDF (576.96kb)
Page 2 of CS150N95 Page 3 of CS150N95

CS150N95 Application

  • Applications Rugged EAS capability and ultra low RDS(ON) is suitable for PWM, load switching especially for E-Bike controller applications. Feature
