DAN217S6R, High speed multi-chip diode

CYStech Electronics Corp.High *speed multi-chip diode Spec.No.: C328S6 Issued Date : 2009.11.23 Revised Date : Page No.: 1/6 DAN217S6R D.
The DAN217S6R consists of two set of high-speed switching diodes connected in series, fabricated in planar technology, and encapsulated in the small S.

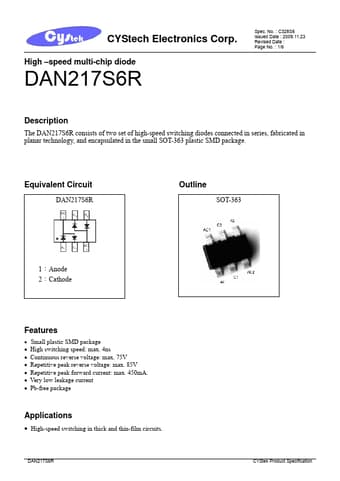

datasheet Preview Page 1 from Datasheet4u.com

DAN217S6R-CYStechElectronics.pdf

DAN217S6R Datasheet Preview — Preview of DAN217S6R PDF

Datasheet Details

Part number:

DAN217S6R

Manufacturer:

CYStech Electronics

File Size:

291.64 KB

Description:

High speed multi-chip diode

Features

* Small plastic SMD package High switching speed: max. 4ns Continuous reverse voltage: max. 75V Repetitive peak reverse voltage: max. 85V Repetitive peak forward current: max. 450mA. Very low leakage current Pb-free package Applic

Applications

* High-speed switching in thick and thin-film circuits. DAN217S6R CYStek Product Specification http://www. Datasheet4U. com CYStech Electronics Corp. Absolute Maximum Ratings, per diode @TA=25℃ Parameters Repetitive peak reverse voltage Continuous reverse voltage Continuous forward current
