DAN217 - Switching diode

Rohm

📥 Download Datasheet

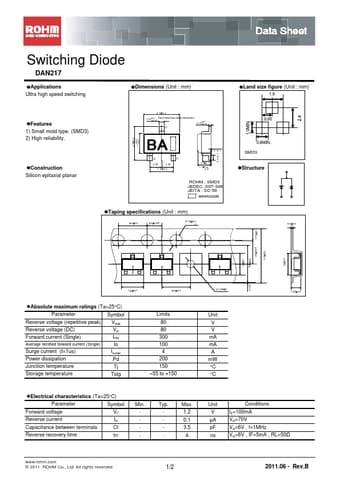

DAN217 Datasheet Preview — Preview of DAN217 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DAN217
Manufacturer	ROHM ↗
File Size	345.58 KB
Description	Switching diode
Datasheet	DAN217_Rohm.pdf

DAN217 Product details

Features

) Small mold type. (SMD3) 2) High reliability.
Construction Silicon epitaxial planar 2.9±0.2 0.4　＋－00..105 Eachlead has same dimension (3) ＋0.1 0.15－0.06 2.8±0.2 1.6－＋00..12 (2) 0.95 0.95 1.9±0.2 (1) 0～0.1 0.8±0.1 1.1±0.2 0.01 ROHM : SMD3 JEDEC :S0T-346 JEITA : SC-59 weekcode.
Taping specifications (Unit : mm) 4.0±0.1 2.0±0.05 φ1.5±0.1 　　　　　 0 0.95 0.8MIN. SMD3.
Structure 0.3±0.1 1.75±0.1 3.2±0.1 5.5±0.2 3.5±0.05 8.0±0.2 3.2±0.1 0～0.5 3.2±0.1 4.0±0.1.
Abs.
