DAN217S3 HIGH-SPEED SWITCHING DIODE

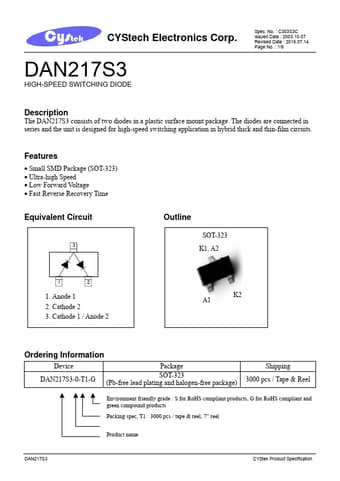

📥 Download Datasheet Datasheet Preview Page 1

Description

CYStech Electronics Corp.DAN217S3 HIGH-SPEED SWITCHING DIODE Spec.No.: C303S3C Issued Date : 2003.10.07 Revised Date : 2016.07.14 Page No.: 1/6 .
The DAN217S3 consists of two diodes in a plastic surface mount package.

📥 Download Datasheet

Preview of DAN217S3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DAN217S3
Manufacturer
CYStech
File Size
263.32 KB
Datasheet
DAN217S3-CYStech.pdf
Description
HIGH-SPEED SWITCHING DIODE

Features

* Small SMD Package (SOT-323)
* Ultra-high Speed
* Low Forward Voltage
* Fast Reverse Recovery Time Equivalent Circuit 3 Outline SOT-323 K1, A2 12 1. Anode 1 2. Cathode 2 3. Cathode 1 / Anode 2 A1 K2 Ordering Information Device Package DAN217S3-0-T1-G SOT-323
