DAN217N3 HIGH-SPEED SWITCHING DIODE

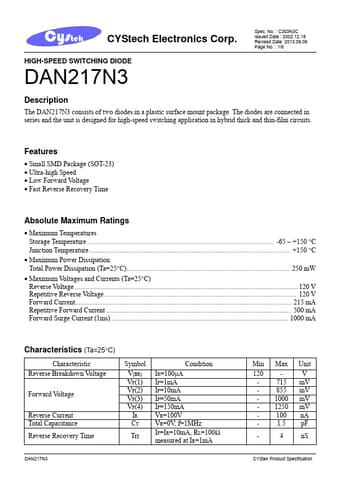

📥 Download Datasheet Datasheet Preview Page 1

Description

CYStech Electronics Corp.HIGH-SPEED SWITCHING DIODE DAN217N3 Spec.No.: C303N3C Issued Date : 2002.12.18 Revised Date :2013.09.06 Page No.: 1/6 D.
The DAN217N3 consists of two diodes in a plastic surface mount package.

📥 Download Datasheet

Preview of DAN217N3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DAN217N3
Manufacturer
CYStech
File Size
214.46 KB
Datasheet
DAN217N3-CYStech.pdf
Description
HIGH-SPEED SWITCHING DIODE

Features

* Small SMD Package (SOT-23)
* Ultra-high Speed
* Low Forward Voltage
* Fast Reverse Recovery Time Absolute Maximum Ratings
* Maximum Temperatures Storage Temperature -65 ~ +150 °C Junction Temperature +150 °C
* Maximum Power Dissipation Total Power
