DAN217UFH - Switching Diode

Rohm

📥 Download Datasheet

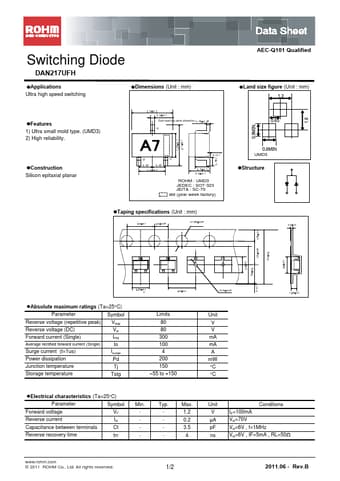

DAN217UFH Datasheet Preview — Preview of DAN217UFH PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DAN217UFH
Manufacturer	ROHM ↗
File Size	771.54 KB
Description	Switching Diode
Datasheet	DAN217UFH-Rohm.pdf

DAN217UFH Product details

Features

1) Ultra small mold type. (UMD3) 2) High reliability. 2.0±0.2 0.3±0.1 Eachleadhas same dimension 0.15±0.05 (3).
Construction Silicon epitaxial planar (2) （0.65）（0.65） 1.3±0.1 (1) 0～0.1 0.7±0.1 0.9±0.1 ROHM : UMD3 JEDEC : SOT-323 JEITA : SC-70 dot (year week factory).
Taping specifications (Unit : mm) 4.0±0.1 2.0±0.05 φ1.55±0.05 1.25±0.1 2.1±0.1 0.1Min 0.9MIN. 1.6 Data Sheet AEC-Q101 Qualified.
Land size figure (Unit : mm) 1.3 0.65 0.8MIN UMD3.
Structure 0.3±0.1 1.7.
