CYT432 Datasheet - CYT

Adjustable Precision Shunt Regulator

CYT432 Features

* Low voltage operation (1.24V) Adjustable output voltage V0 =VREF to 12V Wide operating current range 60µA to 100mA Low dynamic output impedance 0.25Ω (Typ.) Trimmed bandgap design up to + 0.5%. ESD rating is 4KV(Per MIL-STD-883D) Available in Lead-Free Packages. ¾ ¾ ¾ ¾ ¾ ¾ The CYT432 is a low volt

CYT432 General Description

adjustable shunt regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage can be set to any value between VREF (approximately 1.24 V) to 12V with two external resistors. This device has a typical output impedance of 0.25Ω. Active output circuitry provides .

CYT432 Datasheet (320.21 KB)

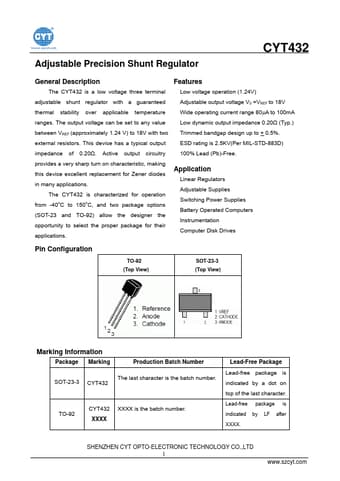

CYT432 Datasheet Preview — Preview of CYT432 PDF

Datasheet Details

Part number:

CYT432

Manufacturer:

CYT

File Size:

320.21 KB

Description:

Adjustable precision shunt regulator.
