G65SC22 - CMOS VERSATILE INTERFACE ADAPTER

Datasheet Summary

Description

The CM D G 65SC22 Versatile Interface Adapter (VIA) is a flexible I/O device for use with the CM D G 6 5 S C X X X series 8-bit m icroprocessor family.

Features

  • CM OS process technology for low power consumption.
  • Fully com patible with NMOS 6522 devices.
  • Low power consumption allows battery-powered operation (2m A at 1MHz).
  • Two 8-bit, bidirectional peripheral I/O ports.
  • Two powerful 16-bit program mable timer/counters.
  • Serial bidirectional peripheral I/O port.
  • Enhanced "handshake" feature.
  • Latched input/output registers on both I/O ports.
  • Programmable data direction regis.

📥 Download Datasheet

Datasheet preview – G65SC22

Datasheet Details

Part number G65SC22
Manufacturer California Micro Devices Corp
File Size 1.00 MB
Description CMOS VERSATILE INTERFACE ADAPTER
Datasheet download datasheet G65SC22 Datasheet
Additional preview pages of the G65SC22 datasheet.

📁 Similar Datasheet

  • G65SC816 - CMOS 8/16-BIT MICROPROCESSOR (CALIFORNIA MICRO DEVICES)
  • G656 - Microprocessor Reset IC (Global Mixed-mode Technology)
  • G657 - Microprocessor Reset IC (Global Mixed-mode Technology)
  • G65P06 - P-Channel Enhancement Mode Power MOSFET (GOFORD)
  • G65P06D5 - P-Channel Enhancement Mode Power MOSFET (GOFORD)
Other Datasheets by California Micro Devices Corp
  • G65SC21 - CMOS Peripheral Interface Adapter
  • G65SC02 - CMOS G65SC02-A 8-BIT MICROPROCESSOR
  • G65SC150 - CMOS COMMUNICATIONS TERMINAL UNIT
  • G65SC151 - ADV-CMOS COMMUNICATIONS TERMINAL UNIT
  • G65SC51 - CMOS ASYNCHRONOUS COMMUNICATIONS INTERFACE ADAPTER
  • G65SC802 - CMOS 8/16-BIT MICROPROCESSOR
  • G65SC816 - CMOS 8/16-BIT MICROPROCESSOR

Full PDF Text Transcription

Click to expand full text

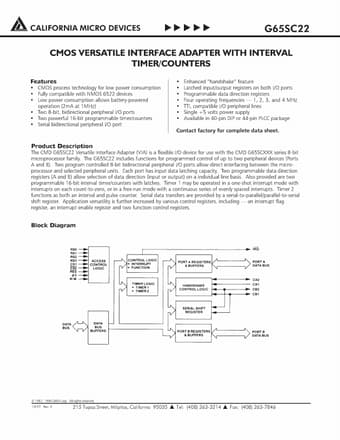

A CALIFORNIA MICRO DEVICES G65SC22 CMOS VERSATILE INTERFACE ADAPTER WITH INTERVAL TIM E R /C O U N TER S Features • CM OS process technology for low power consumption • Fully com patible with NMOS 6522 devices • Low power consumption allows battery-powered operation (2m A at 1MHz) • Two 8-bit, bidirectional peripheral I/O ports • Two powerful 16-bit program mable timer/counters • Serial bidirectional peripheral I/O port • Enhanced "handshake" feature • Latched input/output registers on both I/O ports • Programmable data direction registers • Four operating frequencies — 1, 2, 3,and 4 MHz • TTL com patible I/O peripheral lines • Single + 5 volts power supply • Available in 40-pin DIP or 44-pin PLCC package Contact factory for complete data sheet.
