G65SC802, G65SC816 CMOS 8/16-BIT MICROPROCESSOR

G65SC802 Description

Microcircuits G65SC802 G65SC816 CMOS 8-Bit/16-Bit Microprocessor Family .

G65SC802 Features

* Advanced CMOS design for low power consumption and increased noise immunity
* Emulation mode for total software compatibility with 6502 designs
* Full 16-bit ALU, Accumulator, Stack Pointer, and Index Registers
* Direct Register for “zero page” addressing

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: G65SC802, G65SC816. Please refer to the document for exact specifications by model.

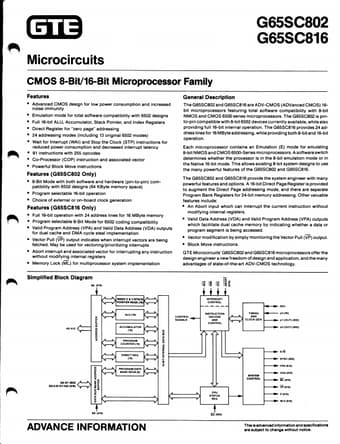

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
G65SC802, G65SC816
Manufacturer
California Micro Devices Corp
File Size
1.05 MB
Datasheet
G65SC816_CaliforniaMicroDevicesCorp.pdf
Description
CMOS 8/16-BIT MICROPROCESSOR
Note
This datasheet PDF includes multiple part numbers: G65SC802, G65SC816.
Please refer to the document for exact specifications by model.
