2N2412 - PNP SILICON TRANSISTOR

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR 2N2411, 2N2412 types are PNP Saturated Switching Transistors designed for high speed switching applications.

Central Corp

📥 Download Datasheet

Datasheet Details

Part number	2N2412
Manufacturer	Central Corp
File Size	69.67 KB
Description	PNP SILICON TRANSISTOR
Datasheet	2N2412 Datasheet
Additional preview pages of the 2N2412 datasheet.

📁 Similar Datasheet

2N2412 - (2N2xxx) Small Signal Transistors (ETC)
2N2410 - NPN.silicon annular transistor (Motorola)
2N2410 - Small Signal Transistors (Central Semiconductor)
2N2411 - (2N2xxx) Small Signal Transistors (ETC)
2N2415 - GERMANIUM ULTRA-HIGH-FREQUENCY TRANSISTORS (Motorola)
2N2416 - GERMANIUM ULTRA-HIGH-FREQUENCY TRANSISTORS (Motorola)
2N2417 - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
2N2417A - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
2N2417B - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
2N2418 - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)

Other Datasheets by Central Corp

2N2411 - PNP SILICON TRANSISTOR
2N2619 - SCRs

Full PDF Text Transcription

Click to expand full text

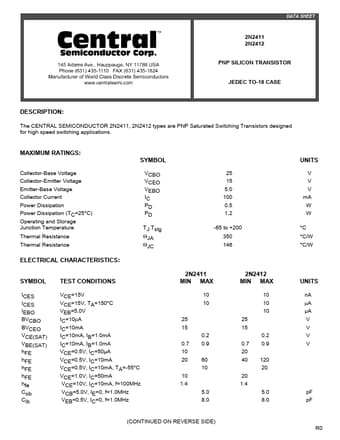

DATA SHEET 2N2411 2N2412 PNP SILICON TRANSISTOR JEDEC TO-18 CASE DESCRIPTION: The CENTRAL SEMICONDUCTOR 2N2411, 2N2412 types are PNP Saturated Switching Transistors designed for high speed switching applications. MAXIMUM RATINGS: SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Power Dissipation (TC=25°C) Operating and Storage Junction Temperature Thermal Resistance Thermal Resistance VCBO VCEO VEBO IC PD PD TJ,Tstg ΘJA ΘJC 25 15 5.0 100 0.5 1.2 -65 to +200 350 146 UNITS V V V mA W W °C °C/W °C/W ELECTRICAL CHARACTERISTICS: SYMBOL ICES ICES IEBO BVCBO BVCEO VCE(SAT) VBE(SAT) hFE hFE hFE hFE hfe Cob Cib TEST CONDITIONS VCE=15V VCE=15V, TA=150°C VEB=5.0V IC=10µA IC=10mA IC=10mA, IB=1.0mA IC=10mA, IB=1.0mA VCE=0.

Published: May 28, 2005 |
