2N2415 Datasheet - Motorola

2N2415 GERMANIUM ULTRA-HIGH-FREQUENCY TRANSISTORS

2N2415 (GERMANIUM) 2N2416 GERMANIUM ULTRA-HIGH-FREQUENCY TRANSISTORS for very low-noise, high-gain amplifiers, oscillators, mixers, and frequency multipliers. High Maximum Frequency of Oscillation f~ = 2000 MHz typ Low Noise Figure NF=3.0 dB max at 200 MHz (2N2415) High Maximum Available Gain MAG = 14 dB typ at 500 MHz for 2N2415. MAG = 12.5 dB typ at 500 MHz for 2N2416 High Breakdown Voltages BVcoo =25 Volts typ BVcEo = 15 Volts typ Low Output.

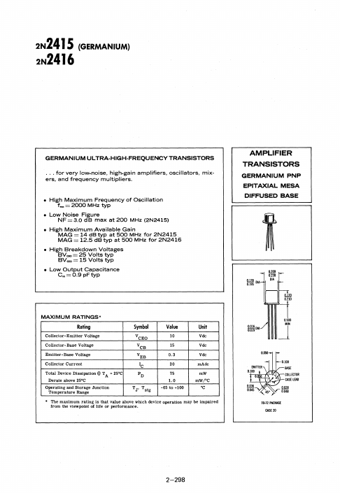

2N2415 Datasheet (116.27 KB)

Preview of 2N2415 PDF
2N2415 Datasheet Preview Page 2

Datasheet Details

Part number:

2N2415

Manufacturer:

Motorola

File Size:

116.27 KB

Description:

Germanium ultra-high-frequency transistors.
