2N242 - PNP germanium power transistors

📥 Download Datasheet

Datasheet preview – 2N242

Datasheet Details

Part number 2N242
Manufacturer Motorola
File Size 62.70 KB
Description PNP germanium power transistors
Datasheet download datasheet 2N242 Datasheet
Additional preview pages of the 2N242 datasheet.

📁 Similar Datasheet

  • 2N2420 - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
  • 2N2420A - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
  • 2N2420B - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
  • 2N2421 - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
  • 2N2421A - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
  • 2N2421B - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
  • 2N2422 - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
  • 2N2422A - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
  • 2N2422B - SILICON UNIJUNCTION TRANSISTOR (Digitron Semiconductors)
  • 2N2405 - Silicon NPN Transistor (NTE)
Other Datasheets by Motorola
  • 2N2405 - NPN silicon annular transistors
  • 2N2410 - NPN.silicon annular transistor
  • 2N2415 - GERMANIUM ULTRA-HIGH-FREQUENCY TRANSISTORS
  • 2N2416 - GERMANIUM ULTRA-HIGH-FREQUENCY TRANSISTORS
  • 2N2453 - DUAL AMPLIFIER TRANSISTOR
  • 2N2453A - DUAL AMPLIFIER TRANSISTOR
  • 2N2476 - NPN Transistor
  • 2N2477 - NPN Transistor

Full PDF Text Transcription

Click to expand full text

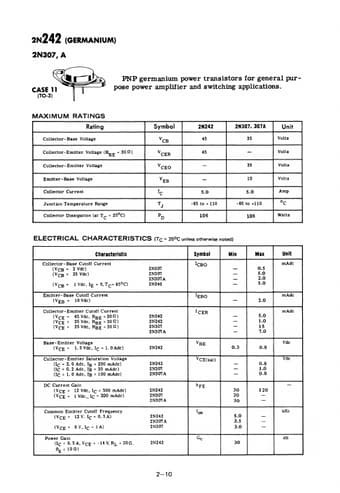

2N242 (GERMANIUM) 2N307, A CASE1~ PNP germanium power transistors for general pur- (TO_3lI1~ pose power amplifier and switching applications_ MAXIMUM RATINGS Rating Collector - Base Voltage Collector-Emitter Voltage (RsE = 301'l) Collector- Emitter Voltage Emitter - Base Voltage Collector Current Junction Temperature Range Collector Dissipation (at TC = 250 C) Symbol VCB VCER VCEO VEB IC TJ PD 2N242 45 45 - - 5.0 -65 to ... 110 106 2N307. 307A 35 - 35 10 5.0 -65 to ...
