CDM2206-800LR, N-CHANNEL LR POWER MOSFET

CDM2206-800LR N-CHANNEL LR POWER MOSFET 6.0 AMP, 800 VOLT TO-220 CASE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CDM2206-800LR is an 800 volt N-Channel MOSFET designed for high voltage, fast switching applications such as Power Factor C.

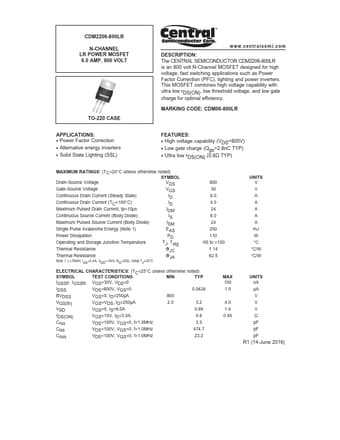

datasheet Preview Page 1 from Datasheet4u.com

CDM2206-800LR-CentralSemiconductor.pdf

CDM2206-800LR Datasheet Preview — Preview of CDM2206-800LR PDF

Datasheet Details

Part number:

CDM2206-800LR

Manufacturer:

Central Semiconductor ↗

File Size:

602.82 KB

Description:

N-CHANNEL LR POWER MOSFET

Features

* High voltage capability (VDS=800V)
* Low gate charge (Qgs=2.8nC TYP)
* Ultra low rDS(ON) (0.8Ω TYP) MAXIMUM RATINGS: (TC=25°C unless otherwise noted) SYMBOL Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (Steady State) ID Continuous Drain

Applications

* such as Power Factor Correction (PFC), lighting and power inverters. This MOSFET combines high voltage capability with ultra low rDS(ON), low threshold voltage, and low gate charge for optimal efficiency. MARKING CODE: CDM06-800LR APPLICATIONS:
* Power Factor Correction
* Alternativ
