CTLSH1-40M563 SURFACE MOUNT HIGH CURRENT LOW VF SILICON SCHOTTKY RECTIFIER

The CENTRAL SEMICONDUCTOR CTLSH1-40M563 is a high quality, low VF Schottky Rectifier packaged in a space saving 1.6 x 1.6mm TLMTM surface mount package. This device is a TLMTM equivalent of the popular CMLSH1-40, SOT-563 device, featuring enhanced thermal characteristics, a package footprint compat.

CTLSH1-40M563 Features

* Device is Halogen Free by design

* High Current (IF=1.0A)

* Low Forward Voltage Drop (VF=0.55V Max @ 1.0A)

* High Thermal Efficiency

* TLM563 with a package profile of 0.4mm, compatible with SOT-563 mounting geometries SYMBOL VRRM IF IFRM IFSM PD TJ, Tstg Θ

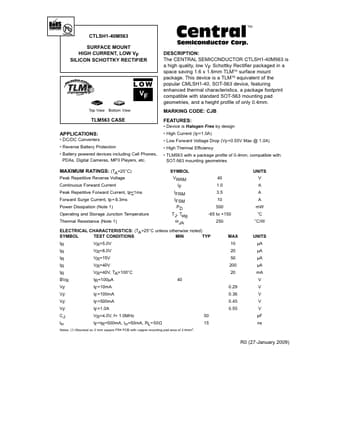

CTLSH1-40M563_CentralSemiconductor.pdf
