CTLSH10-45M364 Datasheet, Rectifier, Central Semiconductor

CTLSH10-45M364 Features

  • Rectifier
  • Low forward voltage, VF=0.49V TYP @ 10A
  • Low reverse leakage current, IR=20μA TYP @ 45V
  • High surge capability
  • Low profile 1.2mm MAX package heigh

PDF File Details

Part number:

CTLSH10-45M364

Manufacturer:

Central Semiconductor ↗

File Size:

210.79kb

Download:

📄 Datasheet

Description:

Schottky rectifier. The CENTRAL SEMICONDUCTOR CTLSH10-45M364 is a high performance 10 amp silicon Schottky rectifier designed for applications as a by-p

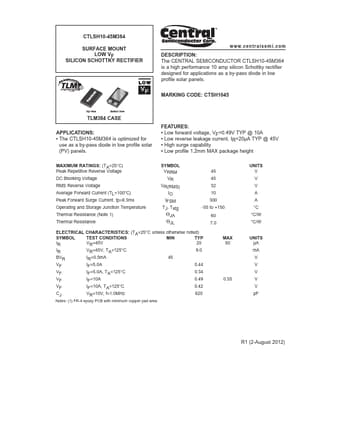

Datasheet Preview: CTLSH10-45M364 📥 Download PDF (210.79kb)
Page 2 of CTLSH10-45M364

CTLSH10-45M364 Application

  • Applications as a by-pass diode in low profile solar panels. MARKING CODE: CTSH1045 TLM364 CASE APPLICATIONS:
  • The CTLSH10-45M364 is optim

TAGS

CTLSH10-45M364
SCHOTTKY
RECTIFIER
Central Semiconductor
