CTLSH10-60M856 Datasheet, Rectifiers, Central Semiconductor

CTLSH10-60M856 Features

  • Rectifiers
  • Low forward voltage, VF=0.59V TYP @ 10A
  • Low reverse leakage current, IR=75μA TYP @ 60V
  • Low profile 1.0mm MAX package height MAXIMUM RATINGS: (TA=25°C) Pe

PDF File Details

Part number:

CTLSH10-60M856

Manufacturer:

Central Semiconductor ↗

File Size:

240.32kb

Download:

📄 Datasheet

Description:

Silicon schottky rectifiers. The CENTRAL SEMICONDUCTOR CTLSH10-60M856 is a high performance 10 amp silicon Schottky rectifier with exceptional energy efficiency.

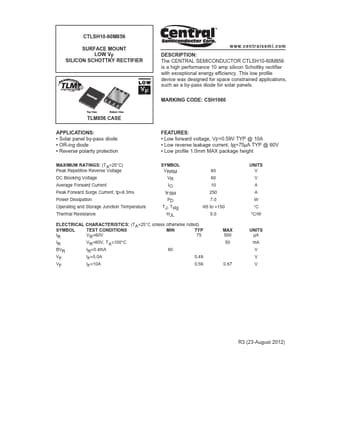

Datasheet Preview: CTLSH10-60M856 📥 Download PDF (240.32kb)
Page 2 of CTLSH10-60M856

CTLSH10-60M856 Application

  • Applications such as a by-pass diode for solar panels. MARKING CODE: CSH1060 TLM856 CASE APPLICATIONS:
  • Solar panel by-pass diode
  • <
