CTLSH1-40M621H Datasheet, Rectifier, Central Semiconductor

CTLSH1-40M621H Features

• Rectifier
• High Current (IF=1.0A)
• Low Forward Voltage Drop (VF=0.55V MAX @ 1.0A)
• High Thermal Efficiency MAXIMUM RATINGS: (TA=25°C) Peak Repetitive Reverse Voltage

PDF File Details

Part number:

CTLSH1-40M621H

Manufacturer:

Central Semiconductor ↗

File Size:

489.87kb

Download:

📄 Datasheet

Description:

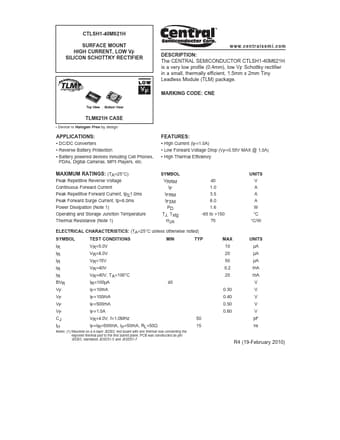

Surface mount high current low vf silicon schottky rectifier. The CENTRAL SEMICONDUCTOR CTLSH1-40M621H is a very low profile (0.4mm), low VF Schottky rectifier in a small, thermally efficient, 1

CTLSH1-40M621H Application

• Applications
• DC/DC Converters
• Reverse Battery Protection
• Battery powered devices including Cell Phones, PDAs, Digital
