CTLSH1-50M832DS Datasheet, Rectifiers, Central Semiconductor

CTLSH1-50M832DS Features

  • Rectifiers
  • High Current (IF=1.0A)
  • Low Forward Voltage Drop (VF=0.55V MAX @ 1.0A)
  • High Thermal Efficiency
  • Small TLM 3x2mm case MAXIMUM RATINGS: (TA=25°C) P

PDF File Details

Part number:

CTLSH1-50M832DS

Manufacturer:

Central Semiconductor ↗

File Size:

325.85kb

Download:

📄 Datasheet

Description:

Silicon schottky rectifiers. The CENTRAL SEMICONDUCTOR CTLSH1-50M832DS Dual, Isolated, Low VF Silicon Schottky rectifiers are designed for applications where sma

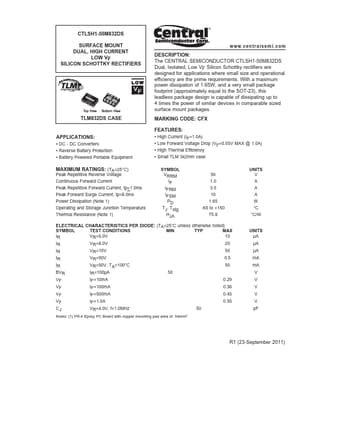

Datasheet Preview: CTLSH1-50M832DS 📥 Download PDF (325.85kb)
Page 2 of CTLSH1-50M832DS

CTLSH1-50M832DS Application

  • Applications where small size and operational efficiency are the prime requirements. With a maximum power dissipation of 1.65W, and a very small pac
