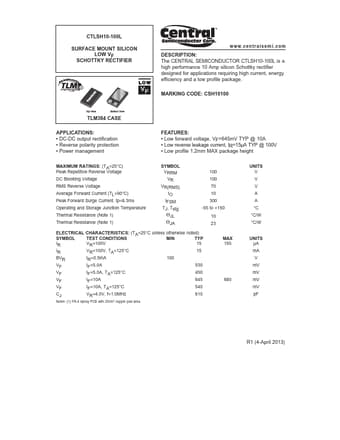

CTLSH10-100L Datasheet, Rectifier, Central Semiconductor

CTLSH10-100L Features

• Rectifier
• Low forward voltage, VF=645mV TYP @ 10A
• Low reverse leakage current, IR=15μA TYP @ 100V
• Low profile 1.2mm MAX package height MAXIMUM RATINGS: (TA=25°C) P

PDF File Details

Part number:

CTLSH10-100L

Manufacturer:

Central Semiconductor ↗

File Size:

379.27kb

Download:

📄 Datasheet

Description:

Schottky rectifier. The CENTRAL SEMICONDUCTOR CTLSH10-100L is a high performance 10 Amp silicon Schottky rectifier designed for applications requiring h

CTLSH10-100L Application

• Applications requiring high current, energy efficiency and a low profile package. MARKING CODE: CSH10100 TLM364 CASE APPLICATIONS:
• DC-DC
