CS52510-1, 10A LDO 5-Pin Adjustable Linear Regulator

CS52510-1 CS52510-1 10A LDO 5-Pin Adjustable Linear Regulator .
This new very low dropout regulator is designed to power the next generation of advanced microprocessor.

datasheet Preview Page 1 from Datasheet4u.com

CS52510-1_CherrySemiconductorCorporation.pdf

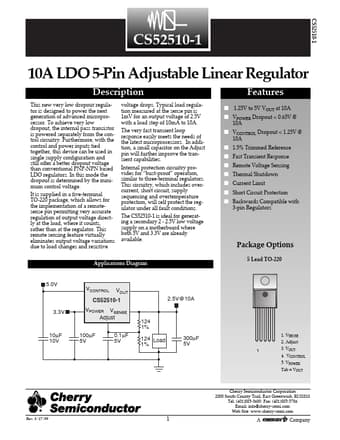

CS52510-1 Datasheet Preview — Preview of CS52510-1 PDF

Datasheet Details

Part number:

CS52510-1

Manufacturer:

Cherry Semiconductor Corporation

File Size:

154.47 KB

Description:

10A LDO 5-Pin Adjustable Linear Regulator

Features

* s 1.25V to 5V VOUT at 10A s VPOWER Dropout < 0.65V @ s VCONTROL Dropout < 1.25V @ 10A s 1.5% Trimmed Reference s Fast Transient Response s Remote Voltage Sensing s Thermal Shutdown s Current Limit s Short Circuit Protection s Backwards Compatible with 3-pin Regulators Package Options 5 Lead TO-220

Applications

* Diagram 5.0V VCONTROL VOUT 2.5V@10A CS52510-1 3.3V VPOWER VSENSE Adjust 100mF 5V 0.1mF 5V 124 1% 124 Load 1% 300mF 5V 1 1. VSENSE 2. Adjust 3. VOUT 4. VCONTROL 5. VPOWER Tab = VOUT 10mF 10V Cherry Semiconductor Corporation 2000 South County Trail, East Greenwich, RI 02818 Tel: (401)885-3600 F
