CS5258-1, 8A LDO 5-Pin Adjustable Linear Regulator

CS5258-1 CS5258-1 8A LDO 5-Pin Adjustable Linear Regulator .
This new very low dropout regulator is designed to power the next generation of advanced microprocessors.

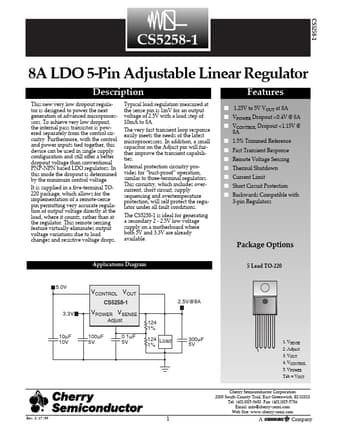

datasheet Preview Page 1 from Datasheet4u.com

CS5258-1_CherrySemiconductorCorporation.pdf

CS5258-1 Datasheet Preview — Preview of CS5258-1 PDF

Datasheet Details

Part number:

CS5258-1

Manufacturer:

Cherry Semiconductor Corporation

File Size:

153.92 KB

Description:

8A LDO 5-Pin Adjustable Linear Regulator

Features

* s 1.25V to 5V VOUT at 8A s VPOWER Dropout

Applications

* Diagram 5.0V VCONTROL VOUT CS5258-1 2.5V@8A 3.3V VPOWER VSENSE Adjust 124 1% 124 Load 1% 300mF 5V 1 1. VSENSE 2. Adjust 3. VOUT 4. VCONTROL 5. VPOWER Tab = VOUT 10mF 10V 100mF 5V 0.1mF 5V Cherry Semiconductor Corporation 2000 South County Trail, East Greenwich, RI 02818 Tel: (401)885-3600 Fa
