CS5257A-1

7A LDO 5-Pin Adjustable Linear Regulator

CS5257A-1 Features

* s 1.25V to 5V VOUT at 7A s VPOWER Dropout < 0.35V @ 7A s VCONTROL Dropout < 1.10V @ 7A s 1.5% Trimmed Reference s Fast Transient Response s Remote Voltage Sensing s Thermal Shutdown s Current Limit s Short Circuit Protection s Drop-In Replacement for LT1580 s Backwards Compatible with 3-pin Regula

CS5257A-1 General Description

This new very low dropout regulator is designed to power the next generation of advanced microprocessors. To achieve very low dropout, the internal pass transistor is powered separately from the control circuitry. Furthermore, with the control and power inputs tied together, this device can be used .

CS5257A-1 Datasheet (173.07 KB)

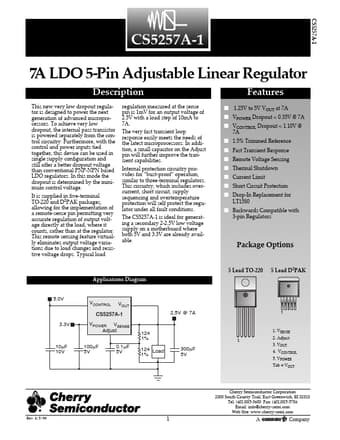

Preview of CS5257A-1 PDF

Datasheet Details

Part number:

CS5257A-1

Manufacturer:

Cherry Semiconductor Corporation

File Size:

173.07 KB

Description:

7a ldo 5-pin adjustable linear regulator.
