UPB201209T, UPB100505T Datasheet - Chilisin Electronics

UPB201209T SMD Multilayer Ferrite Chip Beads

SMD Multilayer Ferrite Chip Beads Multilayer Ferrite Chip Beads Product Identification Chilisin offers a wide range of multi-layered ferrite chip beads with various sizes, frequency characteristics, and impedance values for EMI solutions. These ferrite formulas are used to compose seven types of EMI suppression chip beads: SB, GB, PB, UPB, NB, HF, and VPB series. Product symbol: SB, GB, PB, UPB, NB, HF, VPB Packaging: T:Tape and Reel;B:Bulk Tolerance: Y = ± 25%; M = ± 20%; T:.

UPB100505T-ChilisinElectronics.pdf

This datasheet PDF includes multiple part numbers: UPB201209T, UPB100505T. Please refer to the document for exact specifications by model.

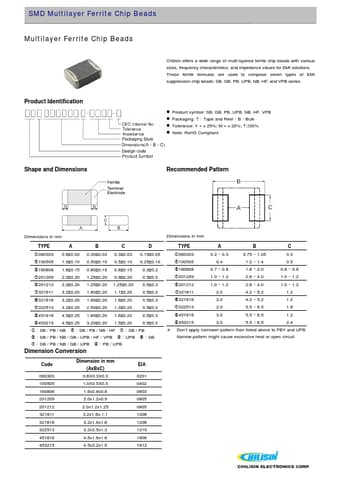

UPB201209T Datasheet Preview Page 2 UPB201209T Datasheet Preview Page 3

Datasheet Details

Part number:

UPB201209T, UPB100505T

Manufacturer:

Chilisin Electronics

File Size:

643.70 KB

Description:

Smd multilayer ferrite chip beads.

Note:

This datasheet PDF includes multiple part numbers: UPB201209T, UPB100505T.
Please refer to the document for exact specifications by model.
