UPB1008K LOW POWER GPS RF RECEIVER

NEC's UPB1008K is a Silicon RFIC especially designed for handheld low power/low cost GPS receivers. The IC combines an LNA, followed by a double-conversion RF/IF downconverter block and a PLL frequency synthesizer on one chip. The second IF Freqency is a pseudo- baseband signal into a on-chip 2-bit .

UPB1008K Features

* LOW POWER CONSUMPTION: 52 mW

* DUAL-CONVERSION IQ DOWN CONVERTER1: Reference frequency: REFin = 27 MHz

* PSEUDO-BASEBAND WITH 2-BIT DIGITIZED OUTPUT

* ON-CHIP LNA, ON-CHIP FREQUENCY SYNTHESIZER, IF AGC AMPLIFIER: with 45 dB typical range of adjustable gain

UPB1008K_CEL.pdf

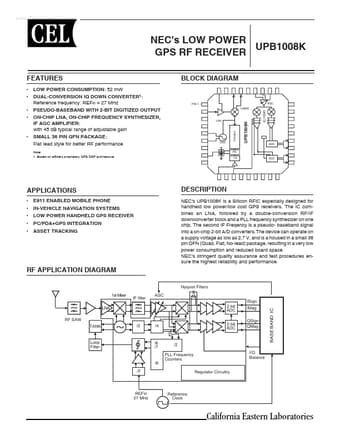

UPB1008K Datasheet Preview — Preview of UPB1008K PDF

Datasheet Details

Part number:

UPB1008K

Manufacturer:

CEL

File Size:

429.02 KB

Description:

Low power gps rf receiver.
