UPB1502GR - 1.7 GHz/ 2.0 GHz LOW-POWER TWO-MODULUS PRESCALER DIVIDED-BY-64/65/ 128/129

UPB1502GR Description

DATA SHEET BIPOLAR DIGITAL INTEGRATED CIRCUITS µPB1502GR, 1502GR(1) 1.7 GHz/ 2.0 GHz LOW-POWER TWO-MODULUS PRESCALER DIVIDED-BY-64/65, 128/129 FE.
µPB1502GR and µPB1502GR(1) are two-modulus prescaler divided by 64/65 or 128/129.

UPB1502GR Features

* High toggle frequency
* 2.0 GHz: µPB1502GR(1), 1.7 GHz: µPB1502GR Low power consumption
* 6.7 mA TYP. at 3 V Operating supply voltage
* 2.7 V to 3.3 V High input sensitivity
* 130 to 220 mVP-P: µPB1502GR(1)

UPB1502GR Applications

* for example 0.8-1.9 GHz cellular and cordless telephones. The ICs operate on low power and therefore are suitable for hand-held, battery-operated systems. These products are manufactured using NEC’s 20 GHz fT NESAT™ III silicon bipolar process. This process uses silicon nitride passivation film and

📥 Download Datasheet

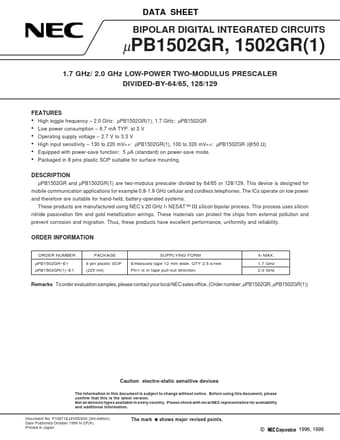

Preview of UPB1502GR PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPB1502GR
Manufacturer
NEC
File Size
165.04 KB
Datasheet
UPB1502GR_NEC.pdf
Description
1.7 GHz/ 2.0 GHz LOW-POWER TWO-MODULUS PRESCALER DIVIDED-BY-64/65/ 128/129
