UPB1513TU - FOR SATELLITE COMMUNICATIONS DIVIDE BY 4 PRESCALER IC

UPB1513TU Description

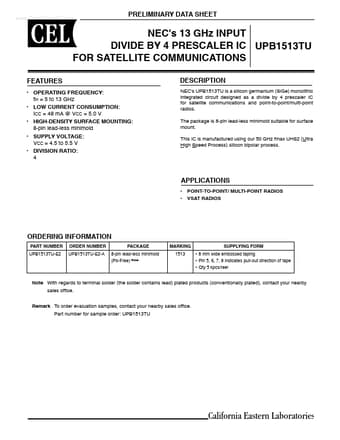

www.DataSheet4U.com PRELIMINARY DATA SHEET NEC's 13 GHz INPUT DIVIDE BY 4 PRESCALER IC UPB1513TU FOR SATELLITE COMMUNICATIONS .
NEC's UPB1513TU is a silicon germanium (SiGe) monolithic integrated circuit designed as a divide by 4 prescaler IC for satellite communications and po.

UPB1513TU Features

* OPERATING FREQUENCY: fin = 5 to 13 GHz
* LOW CURRENT CONSUMPTION: ICC = 48 mA @ VCC = 5.0 V
* HIGH-DENSITY SURFACE MOUNTING: 8-pin lead-less minimold
* SUPPLY VOLTAGE: VCC = 4.5 to 5.5 V

UPB1513TU Applications

* POINT-TO-POINT/ MULTI-POINT RADIOS
* VSAT RADIOS ORDERING INFORMATION PART NUMBER UPB1513TU-E2 ORDER NUMBER UPB1513TU-E2-A PACKAGE 8-pin lead-less minimold (Pb-Free) Note MARKING 1513 SUPPLYING FORM
* 8 mm wide embossed taping
* Pin 5, 6, 7, 8 indicates pull-out di
