UPB1507GV Datasheet - NEC

UPB1507GV - 3GHz INPUT DIVIDE BY 256/ 128/ 64 PRESCALER IC FOR ANALOG DBS TUNERS

DATA SHEET BIPOLAR DIGITAL INTEGRATED CIRCUITS PPB1506GV, PPB1507GV 3GHz INPUT DIVIDE BY 256, 128, 64 PRESCALER IC FOR ANALOG DBS TUNERS The PPB1506GV and PPB1507GV are 3.0 GHz input, high division silicon prescaler ICs for analog DBS tuner applications. These ICs divide-by-256, 128 and 64 contribute to produce analog DBS tuners with kit-use of 17 K series DTS controller or standard CMOS PLL synthesizer IC. The PPB1506GV/PPB1507GV are shrink package versions of the PPB586G/588G or PPB1505GR s.

UPB1507GV Features

* x x x x x High toggle frequency Low current consumption Selectable high division Pin connection variation : fin = 0.5 GHz to 3.0 GHz : 5 V, 19 mA : y256, y128, y64 : PPB1506GV and PPB1507GV High-density surface mounting : 8-pin plastic SSOP (175 mil) APPLICATION These ICs can use as a prescaler

UPB1507GV_NEC.pdf

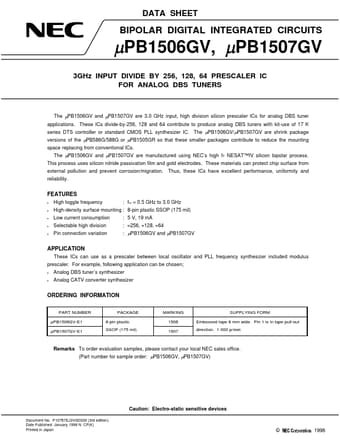

Preview of UPB1507GV PDF
UPB1507GV Datasheet Preview Page 2 UPB1507GV Datasheet Preview Page 3

Datasheet Details

Part number:

UPB1507GV

Manufacturer:

NEC

File Size:

144.00 KB

Description:

3ghz input divide by 256/ 128/ 64 prescaler ic for analog dbs tuners.
