UPB1505GR 3.0 GHz PRESCALER DIVIDED BY 256/ 128/ 64 FOR BS/CS TUNER

µPB1505GR is a silicon prescaler IC operating up to 3.0 GHz and divided by 256, 128, 64. Due to 3.0 GHz operation and high division, this IC can contribute to produce BS/CS tuners with kit-use of 17K series DTS controller or standard CMOS PLL IC. The package is 8 pin plastic SOP suitable for surface.

UPB1505GR Features

* High toggle-frequency : 0.5 GHz to 3.0 GHz Low power-consumption : 14 mA TYP. at 5 V High divide-ratio : ÷256, ÷128, ÷64 High input-sensitivity :

* 14 to +10 dBm @ 1.0 GHz to 2.7 GHz Wide output-swing : 1.6 Vp-p (CL = 8 pF load) ORDERING

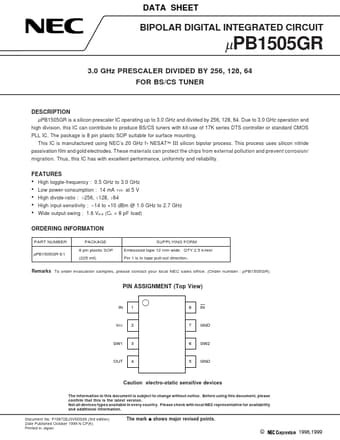

UPB1505GR_NEC.pdf

UPB1505GR Datasheet Preview — Preview of UPB1505GR PDF

Datasheet Details

Part number:

UPB1505GR

Manufacturer:

NEC

File Size:

60.06 KB

Description:

3.0 ghz prescaler divided by 256/ 128/ 64 for bs/cs tuner.
