UPB1508GV 3 GHz INPUT DIVIDE BY 2 PRESCALER IC FOR DBS TUNERS

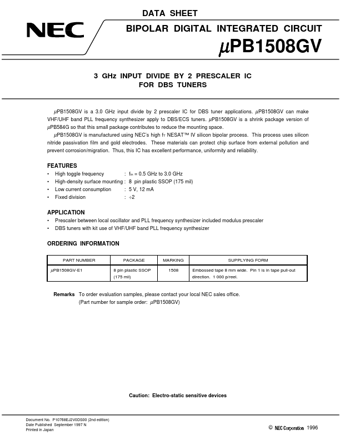

DATA SHEET BIPOLAR DIGITAL INTEGRATED CIRCUIT µPB1508GV 3 GHz INPUT DIVIDE BY 2 PRESCALER IC FOR DBS TUNERS µPB1508GV is a 3.0 GHz input divide by 2 prescaler IC for DBS tuner applications. µPB1508GV can make VHF/UHF band PLL frequency synthesizer apply to DBS/ECS tuners. µPB1508GV is a shrink package version of µPB584G so that this small package contributes to reduce the mounting space. µPB1508GV is manufactured using NEC’s high fT NESAT™ IV silicon bipolar process. This process uses silic.

UPB1508GV Features

* High toggle frequency Low current consumption Fixed division : fin = 0.5 GHz to 3.0 GHz : 5 V, 12 mA : ÷2 High-density surface mounting : 8 pin plastic SSOP (175 mil) APPLICATION

* Prescaler between local oscillator and PLL frequency synthes
