UPB1514TU Datasheet, Ic, CEL

UPB1514TU Features

  • Ic
  • Operating frequency
  • Low current consumption
  • Supply voltage
  • Division ratio : fin = 8 to 16 GHz : ICC = 50 mA @ VCC = 5.0 V : VCC = 4.5 to 5.5 V :8

PDF File Details

Part number:

UPB1514TU

Manufacturer:

CEL

File Size:

355.33kb

Download:

📄 Datasheet

Description:

Input divide by 8 prescaler ic. The µPB1514TU is a silicon germanium (SiGe) monolithic integrated circuit designed as a divide by 8 prescaler IC for satellite commun

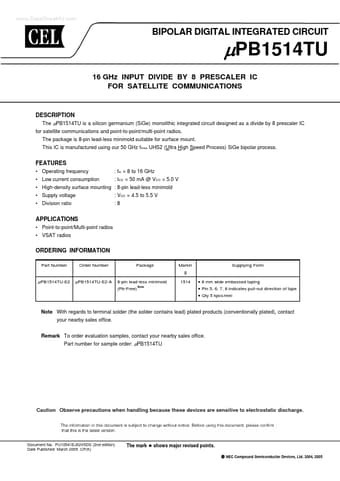

Datasheet Preview: UPB1514TU 📥 Download PDF (355.33kb)
Page 2 of UPB1514TU Page 3 of UPB1514TU

UPB1514TU Application

  • Applications
  • Point-to-point/Multi-point radios
  • VSAT radios ORDERING INFORMATION Part Number Order Number Package Markin g Suppl
