UPB1009K NECs LOW POWER GPS RF RECEIVER BIPOLAR ANALOG + INTEGRATED CIRCUIT

The µPB1009K is a silicon monolithic IC developed for GPS receivers. This IC integrates a full VCO, second IF filter, 4-bit ADC, and digital control interface to reduce cost and mounting space. In addition, its power consumption is low. Moreover, use of a TCXO with frequency of 16.368 MHz/16.384 MHz.

UPB1009K Features

* Double conversion

* Multiple system clocks

* A/D converter

* High-density RF block

* Supply voltage

* Low current consumption

* High-density surface mountable : fREFin = 16.368 MHz, f1stIFin = 61.380 MHz, f2ndIFin = 4.092 MHz : fREFin = 14.4,

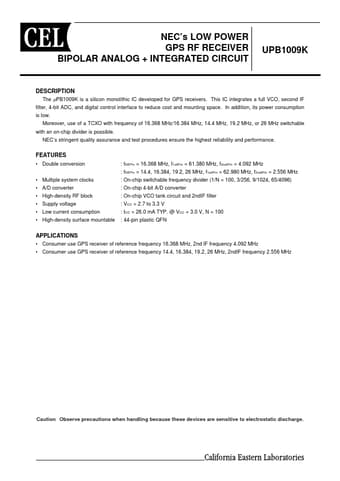

UPB1009K_NEC.pdf

UPB1009K Datasheet Preview — Preview of UPB1009K PDF

Datasheet Details

Part number:

UPB1009K

Manufacturer:

NEC

File Size:

344.04 KB

Description:

Necs low power gps rf receiver bipolar analog + integrated circuit.
