UPB1508GV - 3.0 GHz DIVIDE BY 2 PRESCALER

UPB1508GV Description

www.DataSheet4U.com 3.0 GHz DIVIDE BY 2 PRESCALER .
NEC's UPB1508GV is a Silicon RFIC digital prescaler manufactured with the NESAT™ IV silicon bipolar process.

UPB1508GV Features

* HIGH FREQUENCY OPERATION TO 3 GHz
* FIXED DIVIDE RATIO: ÷2
* LOW CURRENT CONSUMPTION: 12 mA at 5 V
* SMALL PACKAGE: 8 pin SSOP

UPB1508GV Applications

* ELECTRICAL CHARACTERISTICS (TA = -40 to +85°C, VCC = 4.5 to 5.5 V, ZS = ZL = 50 Ω) PART NUMBER PACKAGE OUTLINE SYMBOLS ICC fIN (U) fIN (L) PIN POUT PARAMETERS AND CONDITIONS Supply Current Upper Limit Operating Frequency, PIN = -10 to +6 dBm PIN = -15 to +6 dBm Lower Limit Operating Frequency, PIN

📥 Download Datasheet

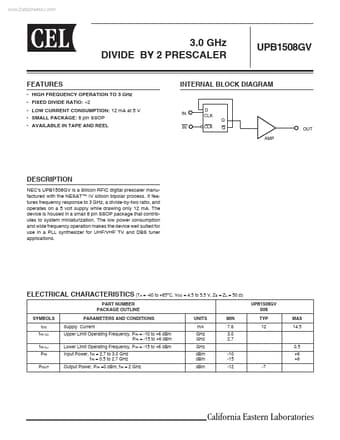

Preview of UPB1508GV PDF
