CEB6031LS2, CEB6031LS2_Chino - N-Channel Logic Level Enhancement Mode Field Effect Transistor

Chino-Excel Technology

📥 Download Datasheet

CEB6031LS2 Datasheet Preview — This datasheet PDF includes multiple part numbers: CEB6031LS2, CEB6031LS2_Chino. Please refer to the document for exact specifications by model.

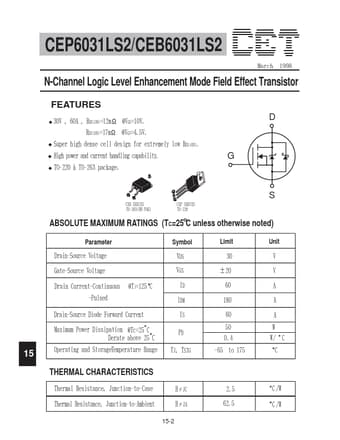

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CEB6031LS2, CEB6031LS2_Chino
Manufacturer: Chino-Excel Technology
File Size: 52.33 KB
Datasheet: CEB6031LS2_Chino-ExcelTechnology.pdf
Description: N-Channel Logic Level Enhancement Mode Field Effect Transistor
Note: This datasheet PDF includes multiple part numbers: CEB6031LS2, CEB6031LS2_Chino.
Please refer to the document for exact specifications by model.

CEB6031LS2 Product details

Features

30V , 60A , RDS(ON)=12m Ω @VGS=10V. RDS(ON)=17mΩ @VGS=4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handling capability. TO-220 & TO-263 package. D G G D G S CEB SERIES TO-263(DD-PAK) G D S CEP SERIES TO-220 S.
