HYG037N04LR1C2 - N-Channel Power MOSFET

Product Overview

ChipSourceTek

Datasheet Details

Part number	HYG037N04LR1C2
Manufacturer	ChipSourceTek
File Size	1.53 MB
Description	N-Channel Power MOSFET
Datasheet	HYG037N04LR1C2 Datasheet

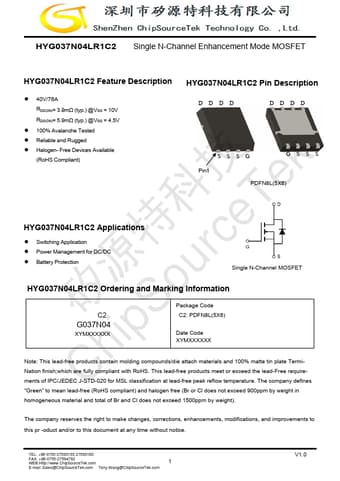

Additional preview pages of the HYG037N04LR1C2 datasheet.

Product details

Description

HYG037N04LR1C2 Pin Description 40V/76A RDS(ON)= 3.9mΩ (typ.) @VGS = 10V DDDD DDDD RDS(ON)= 5.9mΩ (typ.) @VGS = 4.5V 100% Avalanche Tested Reliable and Rugged Halogen- Free Devices Available k (RoHS Compliant) SSSG GSSS Pin1 PDFN8L(5X6) eTe HYG037N04LR1C2 Applications c Switching Application Power Management for DC/DC r Battery Protection Single N-Channel MOSFET ou HYG037N04LR1C2 Ordering and Marking Information S C2 G037N04 ip XYMXXXXXX
