Datasheet Details
| Part number | HYG037N04LR1D |
|---|---|
| Manufacturer | HUAYI |
| File Size | 775.12 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG037N04LR1D Datasheet
|
|
|
| Part number | HYG037N04LR1D |
|---|---|
| Manufacturer | HUAYI |
| File Size | 775.12 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
HYG037N04LR1D Datasheet
|
|
|
|

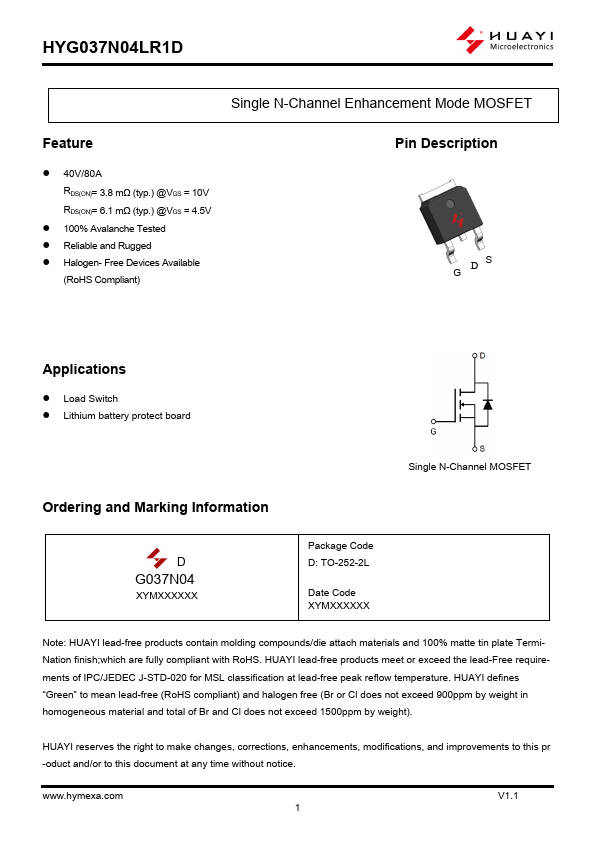

G DS Applications Load Switch Lithium battery protect board Single N-Channel MOSFET Ordering and Marking Information D G037N04 XYMXXXXXX Package Code D: TO-252-2L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow tem
