Datasheet Details
| Part number | HYG035N02KA1C2 |
|---|---|
| Manufacturer | HOOYI |
| File Size | 820.15 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG035N02KA1C2-HOOYI.pdf
|
| Part number | HYG035N02KA1C2 |
|---|---|
| Manufacturer | HOOYI |
| File Size | 820.15 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
HYG035N02KA1C2-HOOYI.pdf
|

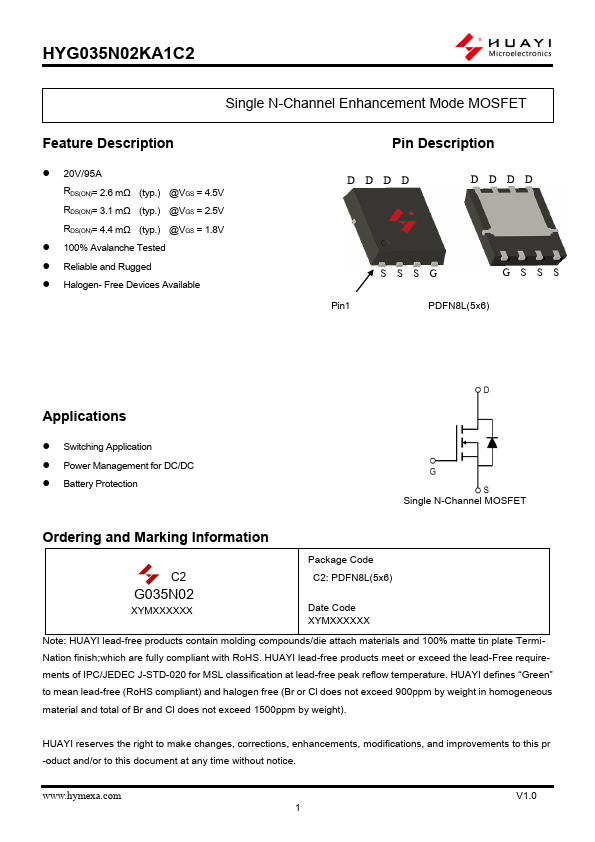

20V/95A RDS(ON)= 2.6 mΩ (typ.) @VGS = 4.5V RDS(ON)= 3.1 mΩ (typ.) @VGS = 2.5V RDS(ON)= 4.4 mΩ (typ.) @VGS = 1.8V 100% Avalanche Tested Reliable and Rugged Halogen- Free Devices Available Pin Description DDDD DDDD SSSG GSSS Pin1 PDFN8L(5x6) Applications Switching Application Power Management for DC/DC Battery Protection Single N-Channel MOSFET Ordering and Marking Information C2 G035N02 XYMXXXXXX Package Code C2: PDFN8L(5x6) Date Code XYMXXXXX
