HYG035N10NS2P Datasheet - HUAYI

HYG035N10NS2P N-Channel Enhancement Mode MOSFET

TO-220FB-3L TO-263-2L Ordering and Marking Information P G035N10 XYMXXXXXX B G035N10 XYMXXXXXX N-Channel MOSFET Package Code P :TO-220FB-3L Date Code XYMXXXXXX B:TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish;.

HYG035N10NS2P-HUAYI.pdf

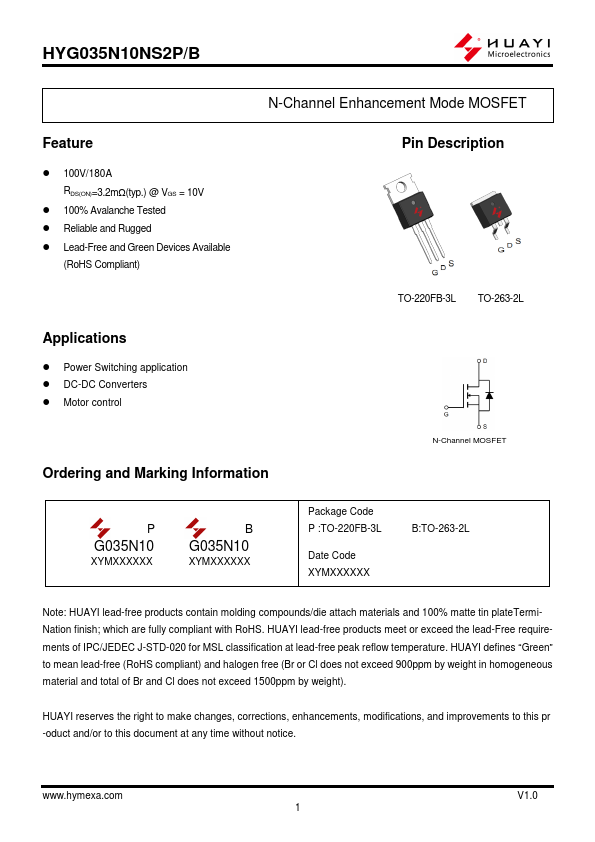

Preview of HYG035N10NS2P PDF

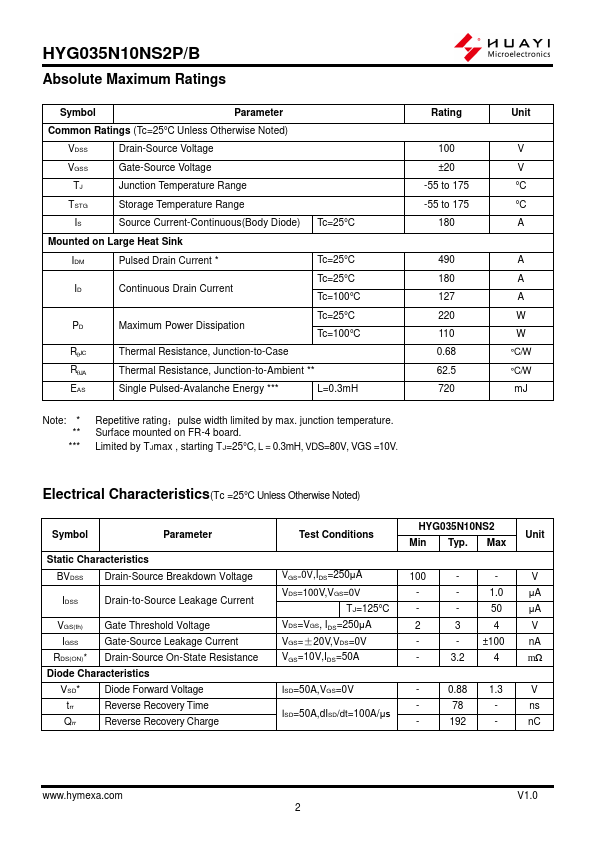

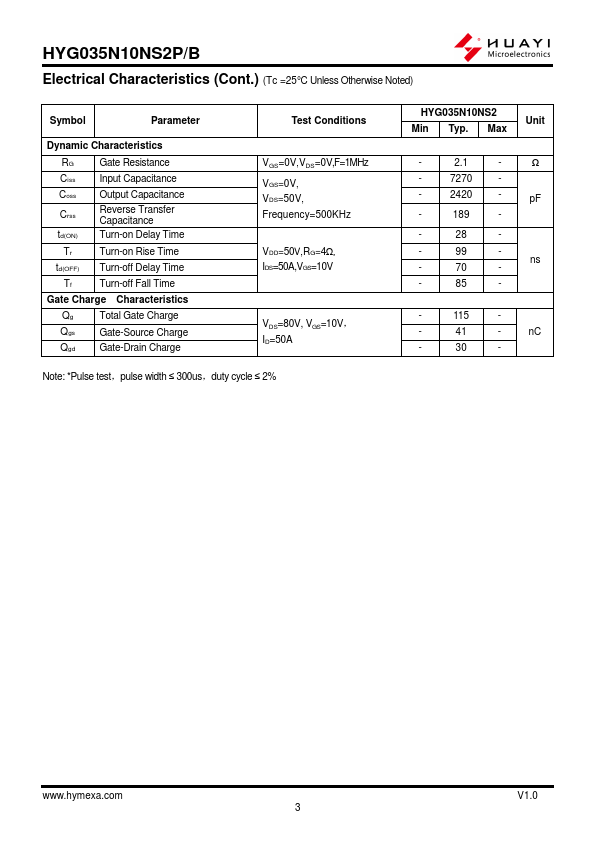

HYG035N10NS2P Datasheet Preview Page 2 HYG035N10NS2P Datasheet Preview Page 3

Datasheet Details

Part number:

HYG035N10NS2P

Manufacturer:

HUAYI

File Size:

667.01 KB

Description:

N-channel enhancement mode mosfet.
