HYG035N04LR1D N-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG035N04LR1D Single N-Channel Enhancement Mode MOSFET .
S GD Applications. Load Switch. Uninterrupted Power Supply. Lithium battery protect board Ordering and Marking Information Single N-C.

📥 Download Datasheet

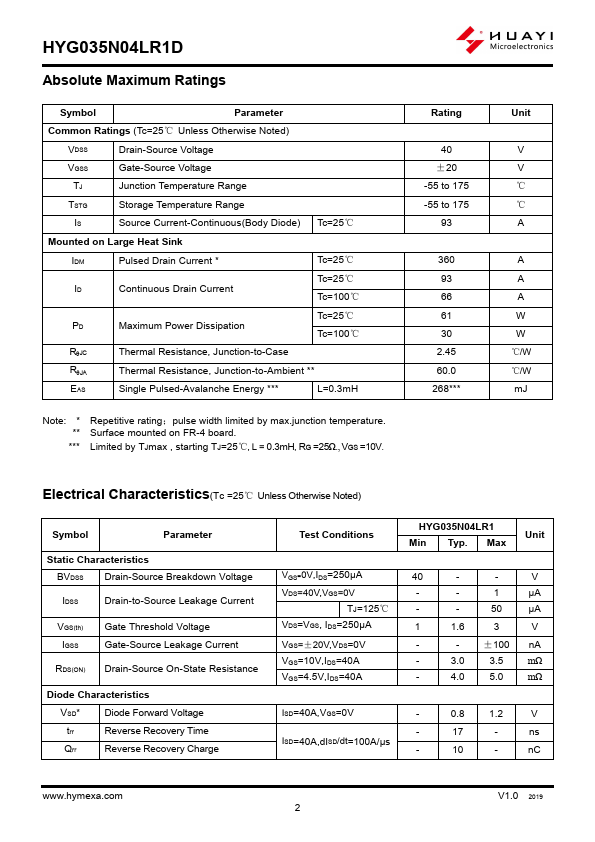

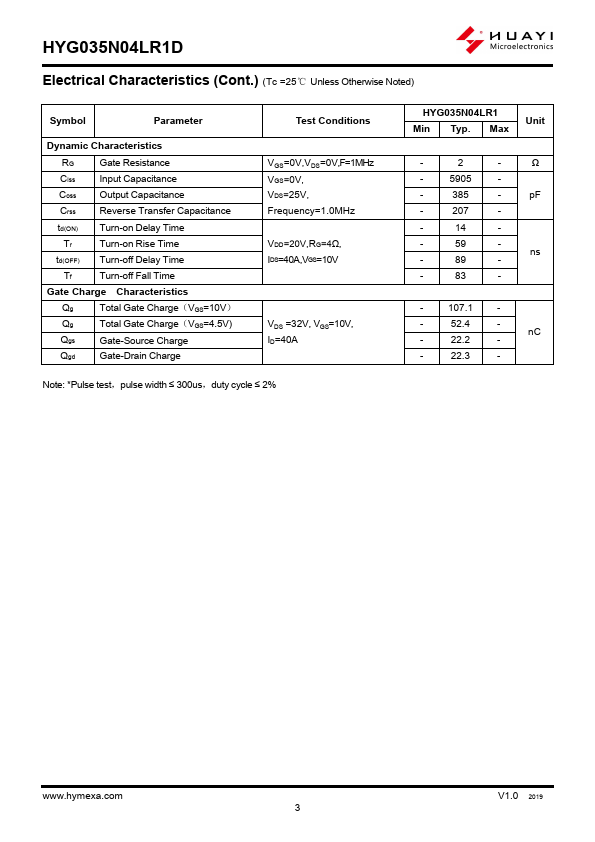

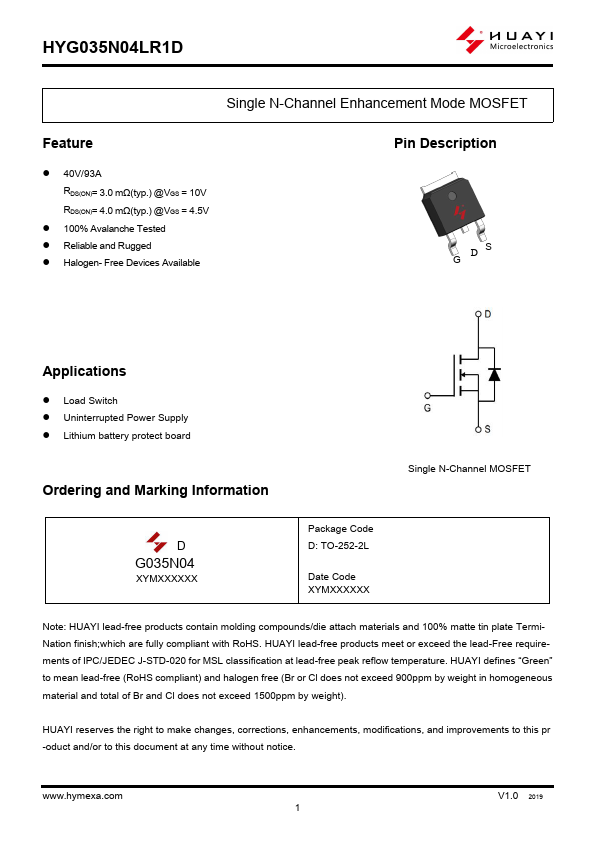

HYG035N04LR1D Datasheet Preview — Preview of HYG035N04LR1D PDF

Datasheet Specifications

Part number: HYG035N04LR1D
Manufacturer: HUAYI
File Size: 1.32 MB
Datasheet: HYG035N04LR1D-HUAYI.pdf
Description: N-Channel Enhancement Mode MOSFET

Applications

* Load Switch
* Uninterrupted Power Supply
* Lithium battery protect board Ordering and Marking Information Single N-Channel MOSFET D G035N04 XYMXXXXXX Package Code D: TO-252-2L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100%
