PN7101

High and Low Side Driver

PN7101 Features

* z Fully operational to +600 V z 3.3 V logic compatible z dV/dt Immunity ±50 V/ns z Floating channel designed for bootstrap operation z Gate drive supply range from 10 V to 20 V z UVLO for low side channel z Output Source / Sink Current Capability 300 mA / 600mA z Independent Logic Inputs to Accommod

PN7101 General Description

The PN7101 is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process. The floating channel driver can be used to drive two N-channel power MOSFET or IGBT independently which operates up to 600 V. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3..

PN7101 Datasheet (405.82 KB)

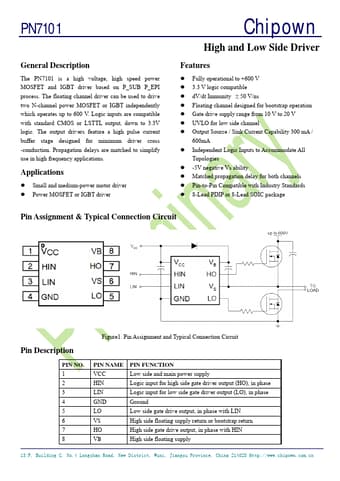

Preview of PN7101 PDF

Datasheet Details

Part number:

PN7101

Manufacturer:

Chipown

File Size:

405.82 KB

Description:

High and low side driver.
