PN7106

High and Low Side Driver

PN7106 Features

* z Fully operational to +600 V z 3.3 V logic compatible z dV/dt Immunity ±50 V/nsec z Floating channel designed for bootstrap operation z Gate drive supply range from 10 V to 20 V z UVLO for both channels z Output Source / Sink Current Capability 400mA / 800mA z Independent Logic Inputs to Accommodat

PN7106 General Description

The PN7106A/B is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process. The floating channel driver can be used to drive two N-channel power MOSFET or IGBT in a half-bridge configuration (version B) or any other high-side& low-side configuration (version A) which opera.

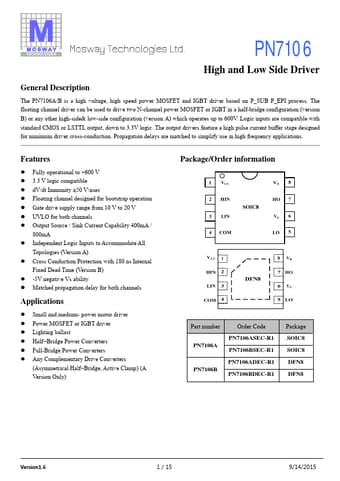

PN7106 Datasheet (366.73 KB)

Preview of PN7106 PDF

Datasheet Details

Part number:

PN7106

Manufacturer:

Mosway

File Size:

366.73 KB

Description:

High and low side driver.
