PN7106A, PN7106 Datasheet - Mosway

PN7106A High and Low Side Driver

The PN7106A/B is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process. The floating channel driver can be used to drive two N-channel power MOSFET or IGBT in a half-bridge configuration (version B) or any other high-side& low-side configuration (version A) which opera.

PN7106A Features

* z Fully operational to +600 V z 3.3 V logic compatible z dV/dt Immunity ±50 V/nsec z Floating channel designed for bootstrap operation z Gate drive supply range from 10 V to 20 V z UVLO for both channels z Output Source / Sink Current Capability 400mA / 800mA z Independent Logic Inputs to Accommodat

PN7106-Mosway.pdf

This datasheet PDF includes multiple part numbers: PN7106A, PN7106. Please refer to the document for exact specifications by model.

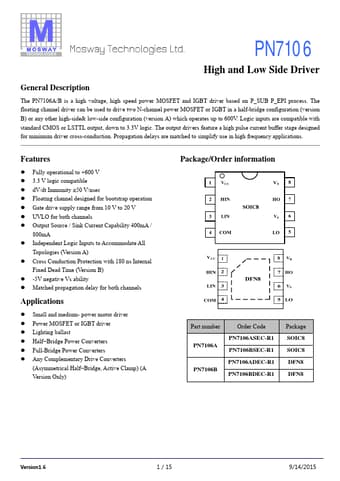

PN7106A Datasheet Preview Page 2 PN7106A Datasheet Preview Page 3

Datasheet Details

Part number:

PN7106A, PN7106

Manufacturer:

Mosway

File Size:

366.73 KB

Description:

High and low side driver.

Note:

This datasheet PDF includes multiple part numbers: PN7106A, PN7106.
Please refer to the document for exact specifications by model.
