PN7103 Datasheet - Mosway

Half-Bridge Driver

PN7103 Features

* z Fully operational to +600 V z 3.3 V logic compatible z dV/dt Immunity ±50 V/nsec z Floating channel designed for bootstrap operation z Gate drive supply range from 10 V to 20 V z UVLO for low side channel z Output Source / Sink Current Capability 300 mA / 600mA z -5V negative Vs ability z Matched

PN7103 General Description

The PN7103 is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process. The floating channel driver can be used to drive two N-channel power MOSFET or IGBT in a half-bridge configuration which operates up to 600 V. Logic inputs are compatible with standard CMOS or LSTTL o.

PN7103 Datasheet (359.53 KB)

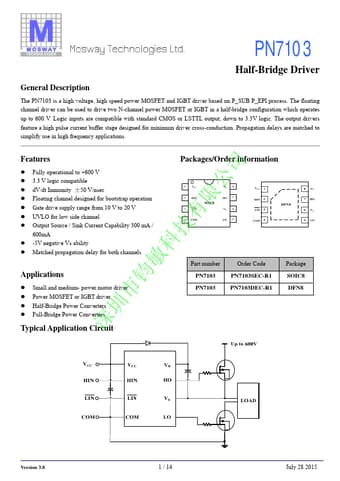

PN7103 Datasheet Preview — Preview of PN7103 PDF

Datasheet Details

Part number:

PN7103

Manufacturer:

Mosway

File Size:

359.53 KB

Description:

Half-bridge driver.
