PN7113 Datasheet, driver equivalent, Chipown

PN7113 Features

  • Driver
  • Fully operational to +600 V
  • 3.3 V logic compatible
  • Floating channel designed for bootstrap operation
  • Gate drive supply range from 10 V to 20 V

PDF File Details

Part number:

PN7113

Manufacturer:

Chipown

File Size:

752.90kb

Download:

📄 Datasheet

Description:

High and low side driver. The PN7113 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels b

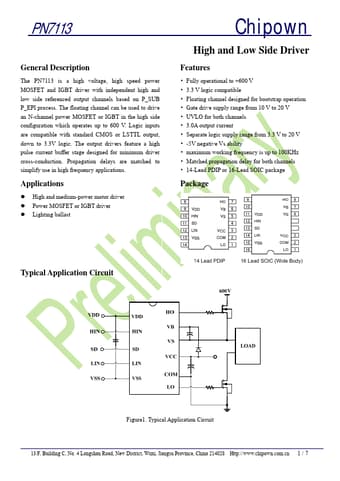

Datasheet Preview: PN7113 📥 Download PDF (752.90kb)
Page 2 of PN7113 Page 3 of PN7113

PN7113 Application

  • Applications Applications z High and medium-power motor driver z Power MOSFET or IGBT driver z Lighting ballast Chipown High and Low Side Driver F
