CS8406, 192 KHZ DIGITAL AUDIO INTERFACE TRANSMITTER

CS8406 192 kHz Digital Audio Interface Transmitter .
The CS8406 is a monolithic CMOS device which encodes and transmits audio data according to the AES3, IEC60958, S/PDIF, o r EIAJ CP1201 standards.

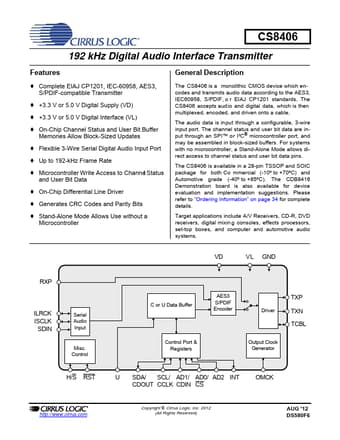

datasheet Preview Page 1 from Datasheet4u.com

CS8406_CirrusLogic.pdf

CS8406 Datasheet Preview — Preview of CS8406 PDF

Datasheet Details

Part number:

CS8406

Manufacturer:

Cirrus Logic

File Size:

384.12 KB

Description:

192 KHZ DIGITAL AUDIO INTERFACE TRANSMITTER

Features

*  Complete EIAJ CP1201, IEC-60958, AES3, S/PDIF-compatible Transmitter  +3.3 V or 5.0 V Digital Supply (VD)  +3.3 V or 5.0 V Digital Interface (VL)  On-Chip Channel Status and User Bit Buffer Memories Allow Block-Sized Updates  Flexible 3-Wire Serial Digital Audio Input Port  Up to 192-kHz Fram

Applications

* include A/V Receivers, CD-R, DVD receivers, digital mixin g consoles, effects processors, set-top boxes, and computer and automotive audio systems. VD VL GND RXP ILRCK ISCLK SDIN Serial Audio Input Misc. Control H/S RST C or U Data Buffer Control Port & Registers AES3 S/PDIF Encoder Driver
