CS8403A

96 kHz Digital Audio Transmitter

Crystal Semiconductor

CS8403A Features

* l Sample rates up to 108 kHz l Supports: AES/EBU, IEC 958, S/PDIF, & EIAJ CP-340 professional and consumer formats l Generates CRC codes and parity bits l On-Chip RS422 line driver l Configurable buffer memory (CS8403A) l Transparent mode allows direct connection of CS8404A and CS8414 or CS8403A and

CS8403A General Description

The CS8403A and CS8404A are digital audio transmitters which support 96 kHz sample rate operation. The devices encode and transmit audio data according to the AES/EBU, IEC958, S/PDIF, & EIAJ CP-340 interface standards. The CS8403A and CS8404A accept audio and digital data, which is then multiplexed,.

CS8403A Datasheet (354.68 KB)

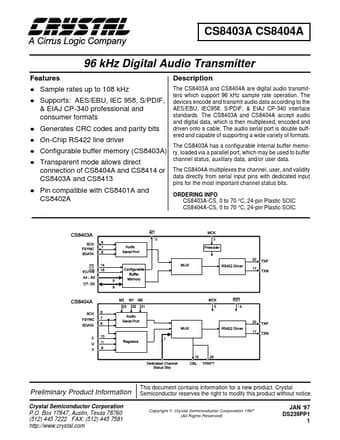

CS8403A Datasheet Preview — Preview of CS8403A PDF

Datasheet Details

Part number:

CS8403A

Manufacturer:

Crystal Semiconductor

File Size:

354.68 KB

Description:

96 khz digital audio transmitter.
