CS840A8H

Silicon N-Channel Power MOSFET

CS840A8H Features

* l Fast Switching l Low ON Resistance(Rdson≤0.75Ω) l Low Gate Charge (Typical Data:28nC) l Low Reverse transfer capacitances(Typical:18pF) l 100% Single Pulse avalanche energy Test Applications: Power switch circuit of adaptor and charger. Absolute(Tc= 25℃ unless otherwise specified): Symbol Param

CS840A8H General Description

CS840 A8H, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and VDSS ID PD (TC=25℃) RDS(ON)Typ 500 8 110 0.57 enhance the avalanche energy. The transistor can be used in various power swit.

CS840A8H Datasheet (348.26 KB)

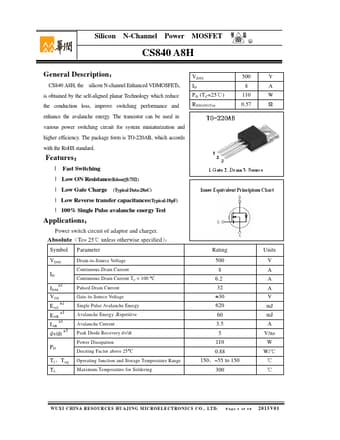

Preview of CS840A8H PDF

Datasheet Details

Part number:

CS840A8H

Manufacturer:

Huajing Microelectronics

File Size:

348.26 KB

Description:

Silicon n-channel power mosfet.
