CM15

Molded DYAD

CM15 Features

* Small size SMT-compatible Easily formed leads Sputtered ruthenium contacts Hermetically sealed contacts Fast switching speed

* up to 500Hz Wide range of available magnetic sensitivities Superior mechanical strength Enhanced for better auto placement Applications

* Security

CM15 General Description

Clare’s Molded DYAD® dry reed switches are ideally suited for small switching signal applications. This switch has sputtered ruthenium contacts and an extraordinary seal strength, achieved by a patented laser sealing of the glass. In low level or dry switching environments, both switches typically p.

CM15 Datasheet (318.00 KB)

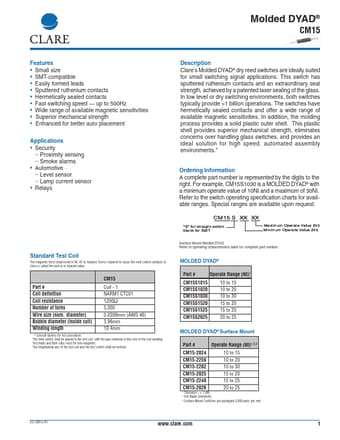

Preview of CM15 PDF

Datasheet Details

Part number:

CM15

Manufacturer:

Clare Inc.

File Size:

318.00 KB

Description:

Molded dyad.
